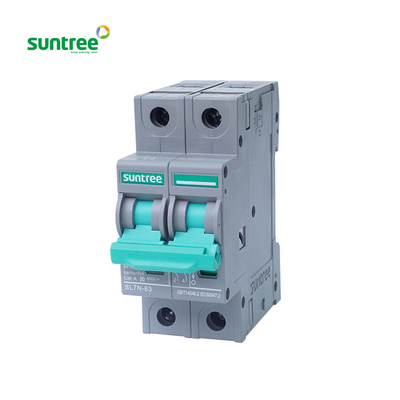

Name: PV System 2 Pole 550V DC MCB 20Amp Solar Miniature Circuit Breaker MCB Price
Brand: PV System 2 Pole 550V DC MCB 20Amp Solar Miniature Circuit Breaker MCB Price
SKU: SL7-63
Price: 1 USD
Availability: InStock
Rating: 4.7 (198 reviews)

Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα

Χαρακτηριστικά

Προδιαγραφές

Model Number: SL7-63

Type: 20Amp Miniature Circuit Breaker, Mini

Certificate: CE,CB,IEC etc

Rated Current: 6-63A

Where Use: solar pv system

Breaking capacity: 4.5KA/6KA

Rated Voltage: 550V 800V

Poles: 2P

Operating temperature: -5Â°C - 40Â°C

Install: 35mm din rail breaker

Frequency: 50 / 60 Hz

Poles Number: 2P

Βασικές πληροφορίες

Πιστοποίηση: CE,CB,IEC etc

Model Number: SL7-63

Πληρωμής & Αποστολής Όροι

Packaging Details: standard carton packing

Supply Ability: 5000 Piece/Pieces per Month

Περιγραφή προϊόντων

Why Choose Us

Products Details

SL7N PV Series Circuit Breaker	SL7N-63
Frame degree rated current (A)	63A
Ue Rated operating voltage (V DC)	DC 550V	DC 800V	DC 1000V	DC 1200V
Rated Current In (A)	6-10-16-20-25-32-40-50-63
Rated insulation voltage Ui (V DC)	2P: 800V 4P:1200V
Rated Impact voltage Uimp (kV)	4
Ultimate breaking capacity lcu (kA)	6	6	6	6
Run breaking capacity lcs (%lcu)	75%	75%	75%	75%
Curve type	C
Trip type	Thermal-magnetic
MECHANICAL	20000
MECHANICAL		8500
ELECTRIC	2500
ELECTRIC		1500
Shunt release (SHT)	Option
Undervoltage release (UNT)
Auxiliary contact (AX)
Alarm contact (AL)
Wiring capacity (mm²)	In≤32A,1∼25mm²,1≥40A,10∼35mm²
Ambient temperature (℃)	-20∼70
Altitude	≤2000
Relative humidity	≤95%
Pollution Level	3
Installation Environment	No obvious shock and vibration
Installation category	Class lll
Installation	DIN Standard rail
